Cảm biến cân xe tải WBK

Cảm biến WBK dùng trong cân xe tải
Nhà cung cấp: CAS Korea

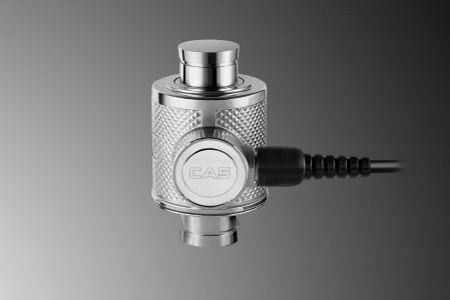

WBK - Truck and Tank weighing Load Cell



Features:

- Stainless steel construction

- OIML C3 Approved (OIML R60)

- Hermetically sealed

- Ex ia IIC T4 Approved

- Protection Class IP68

Options:

- Ex ia IIC T4 Approved

- OIML C3 Approved (OIML R60)

- Protection Class IP68

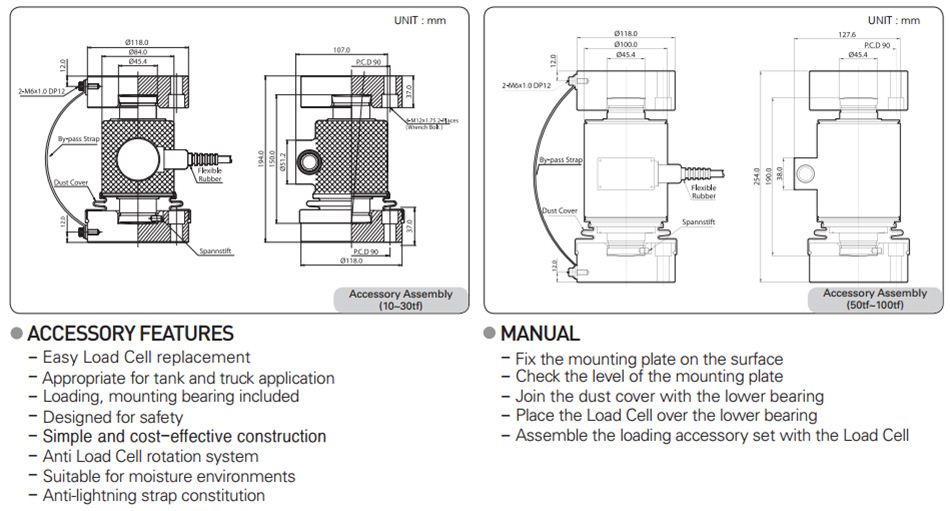

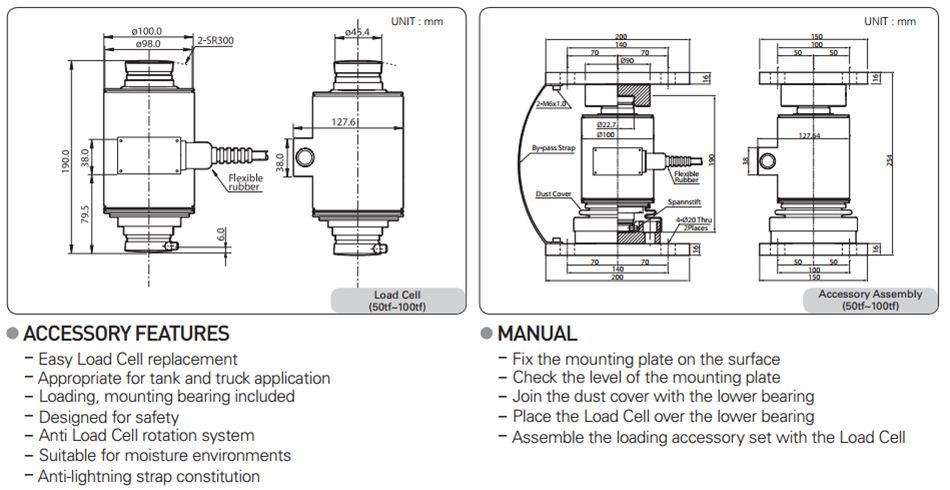

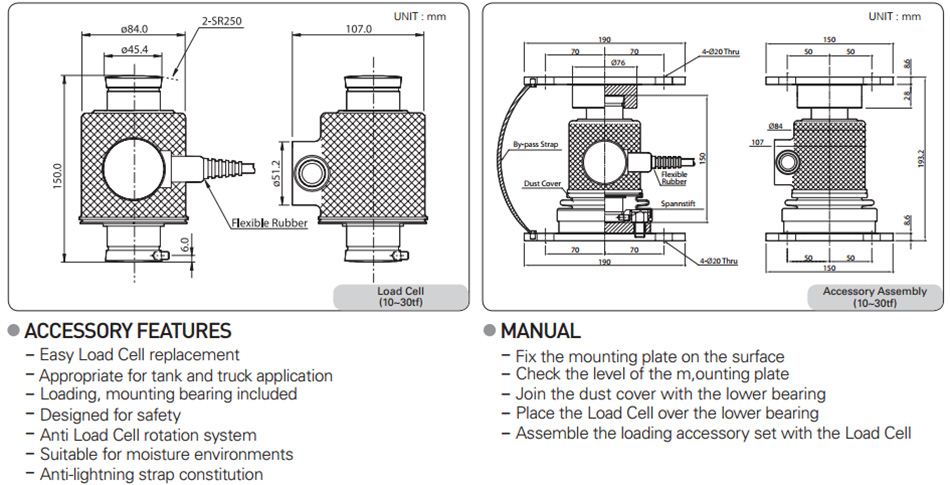

Accessory Options:

- Accessory set

Specification:

Capacitytf10, 20, 25, 30, 50, 100
Rate Output
Zero Balance
mV / V
mV / V
2.0 ±0.005
0.0 ±0.020
Accuracy Class  - D3 C3
Non-Linearity
Hysteresis
Combined Error
Repeatability
Creep for 30min.
Return for 30min.
Resolution
Division
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
-
mV / V
≤0.03
≤0.03
≤0.03
≤0.02
≤0.03
≤0.03
≤1/3000
0.00067
≤0.02
≤0.02
≤0.02
≤0.01
≤0.017
≤0.017
≤1/5000
0.0004
Temperature
Effect on
-Zero value
-Output Value
%/10˚C
%/10˚C
≤0.03
≤0.03
≤0.014
≤0.011
Excitation -Recommended
-Maximum
V
V
10
15
Resistance -Input
-Output
-Insulation


MΩ
350 ±3.5
350 ±3.5
>2000
Compensated Temerature Range
Operating Temperature Range
˚C
˚C
-10 to +40
-40 to +70
Material & Plate - Stainless steel
Cable Specification - ø8 x 4P x 10M, ø8 x 4P x 25M(P.V.C)
ø8 x 6Px 12M(Urethane)
Safety Overload  % R.L. 150% R.L.

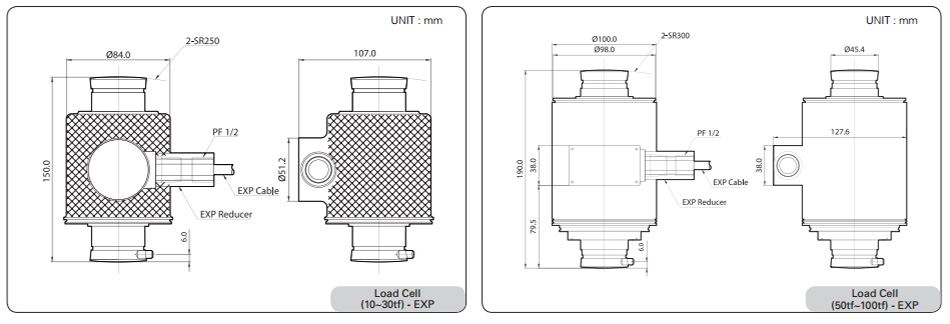

Platform Size mm No Platform Type
