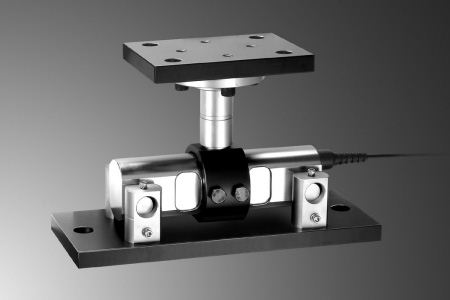

DSB-20 - Truck and Tank weighing Load Cell
Features:
- Nickel plated steel construction
- Rocker pin loading design
- Truck scale Load Cell with accessory
- Designed according to IP67
Accessory Option:
- Accessory (Set)
Accessory Features:
- Appropriate for tank and hopper application
- Designed for safety
- High resistance against side force
- High durability
Manual:
- Check the Load Cell level with the surface
Specification:
| Capacity | tf | 20 |
|---|
Rate Output
Zero Balance |
mV / V
mV / V |
2.0 ±0.004
0.0 ±0.02 |
| Accuracy Class |
- |
- |
Non-Linearity
Hysteresis
Combined Error
Repeatability
Creep for 30min.
Return for 30min.
Resolution
Division |
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
-
mV / V |
≤0.03
≤0.03
≤0.03
≤0.01
≤0.03
≤0.03
≤1/3000
0.00067 |
Temperature
Effect on |
-Zero value
-Output Value |
%/10˚C
%/10˚C |
≤0.03
≤0.015 |
| Excitation |
-Recommended
-Maximum |
V
V |
10
15 |
| Resistance |
-Input
-Output
-Insulation |
Ω
Ω
MΩ |
800 ±40
700 ±7
>2000 |
Compensated Temerature Range
Operating Temperature Range |
˚C
˚C |
-10 to +40
-20 to +80 |
| Material & Plate |
- |
Nickel plated steel |
| Cable Specification |
- |
ø8 x 4Px 15M(P.V.C) |
| Safety Overload |
% R.L. |
150% R.L. |
| Platform Size |
mm |
No Platform type |
