Cảm biến tải MNC

Cảm biến tải MNC dạng bánh
Nhà cung cấp: CAS Korea

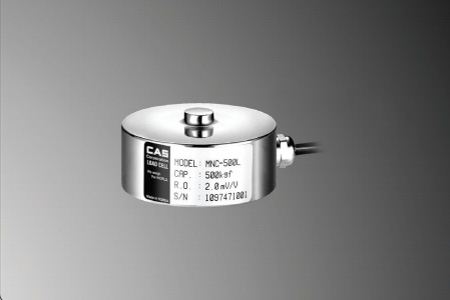

MNC - Miniature Load Cell



Features:

- Stainless steel construction

- Low profile

- Designed according to IP67

Specification:

Capacitykgf50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
Rate Output
Zero Balance
mV / V
mV / V
2.0 ±0.005
0.0 ±0.06
Accuracy Class  - -
Non-Linearity
Hysteresis
Combined Error
Repeatability
Creep for 30min.
Return for 30min.
Resolution
Division
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
-
mV / V
≤0.15
≤0.15
≤0.15
≤0.05
≤0.03
≤0.03
<1/600
0.003
Temperature
Effect on
-Zero value
-Output Value
%/10˚C
%/10˚C
≤0.05
≤0.1
Excitation -Recommended
-Maximum
V
V
10
15
Resistance -Input
-Output
-Insulation


MΩ
420 ±30
350 ±3.5
>2000
Compensated Temerature Range
Operating Temperature Range
˚C
˚C
-10 to +40
-20 to +80
Material & Plate - Stainless steel, Painted steel (5tf~20tf)
Cable Specification - ø5.4 x 4Px 3M(5M)
Safety Overload  % R.L. 150% R.L.
Platform Size mm No Platform type
